HVP50P150ET-D is an ultra-compact X-Ray generator module with high voltage packaging and surface mount fabrication techniques and coupled with proprietary encapsulation technology producing. It uses a closedloop filament control circuitry to provide a highly regulated beam current, offering tight regulation, high stability and low ripple, HVP50P150ET-D can provides users local and remote analog control to set beam voltage, emission current and filament current limit, and also has intelligent surge suppression protection circuit, which can suppress the start current spike effectively.

Typical Applications

Powering grounded cathode X-ray tubes from Kevex, Oxford, RTW, Superior, Varex, Petrick, Trufocus and the other global brands.

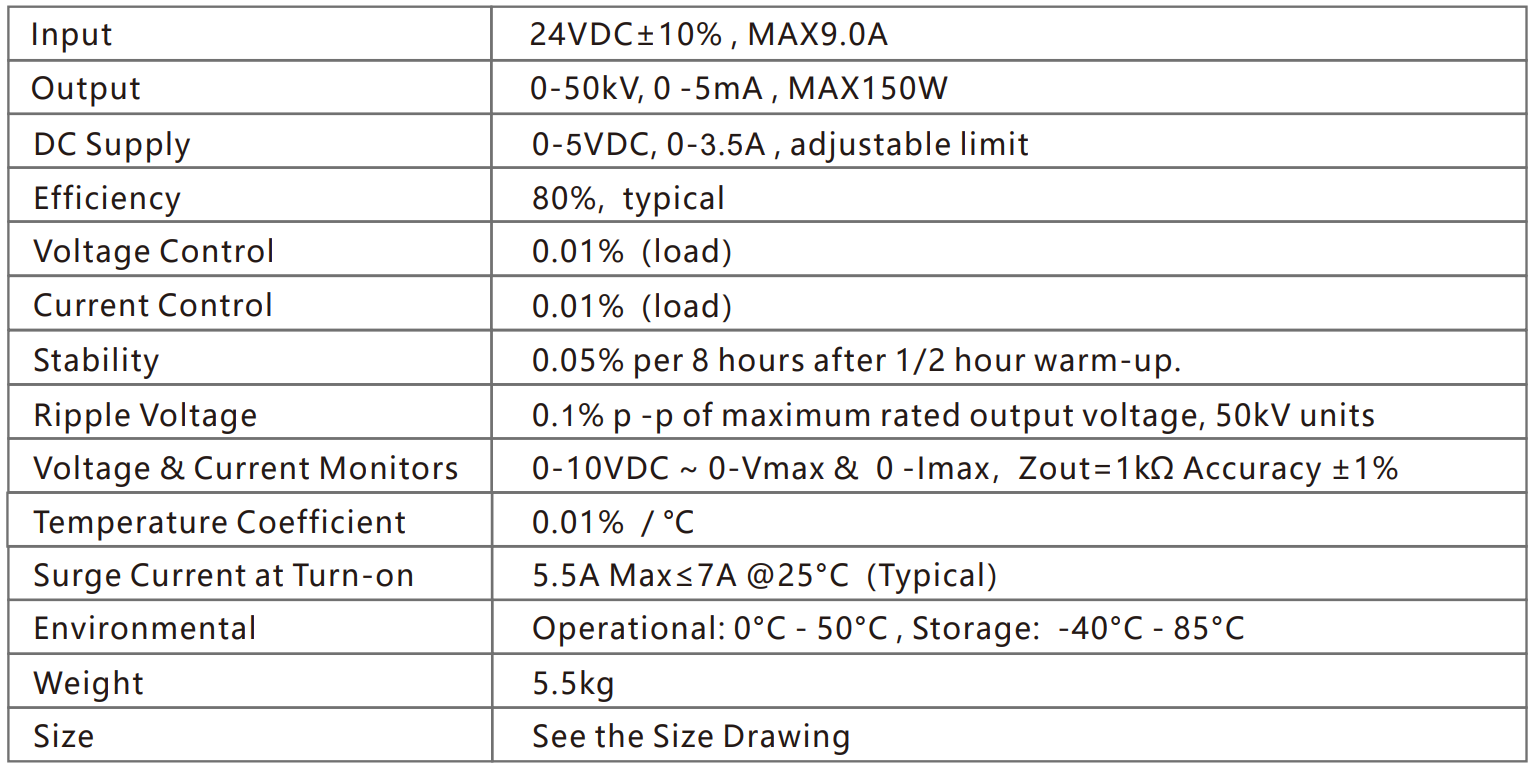

Specifications

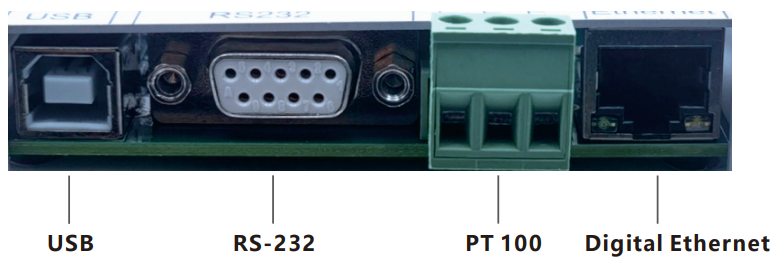

HVP50P150ET-D provides three standard interfaces : USB, RS- 2 3 2 and Digital Ethernet interface, with these standard interfaces, users can easily realize the control operation of the high voltage, it can save more development cost & time, and the overall function of the product can also get a big enhance, and it can also provides a Bias voltage and a PT100 temperature monitoring interface, which can be used to control the size of the focal spot and to monitor temperature of the X-ray Tube respectively.
