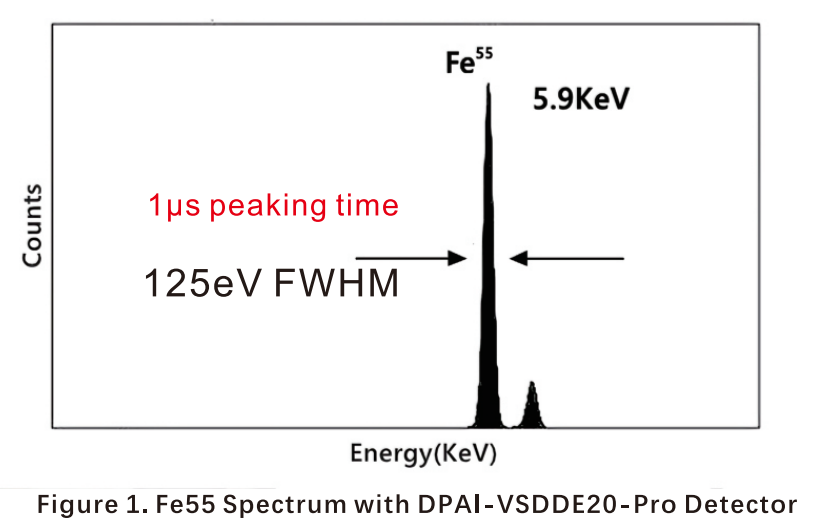

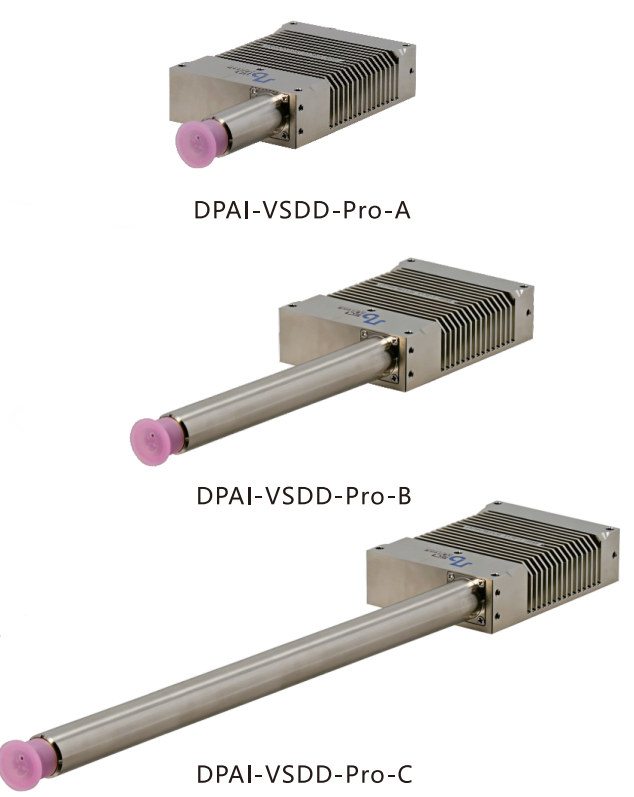

DPAl-VSDD-Pro is a high performance new X-ray Silicon Drift Detector, can realize the highresolution at a low forming time.

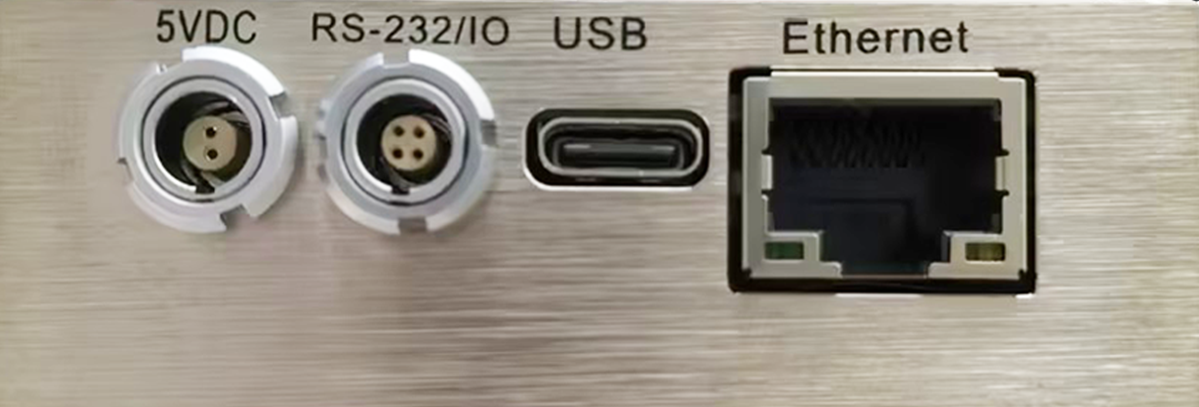

USB port, RS232 port, Ethernet port (1000M optional)

Applications:

●  X-Ray Fluorescence

●  ROHS/WEEE Complience XRF

●  OEM & Special Applications

●  Process Control

●  Research

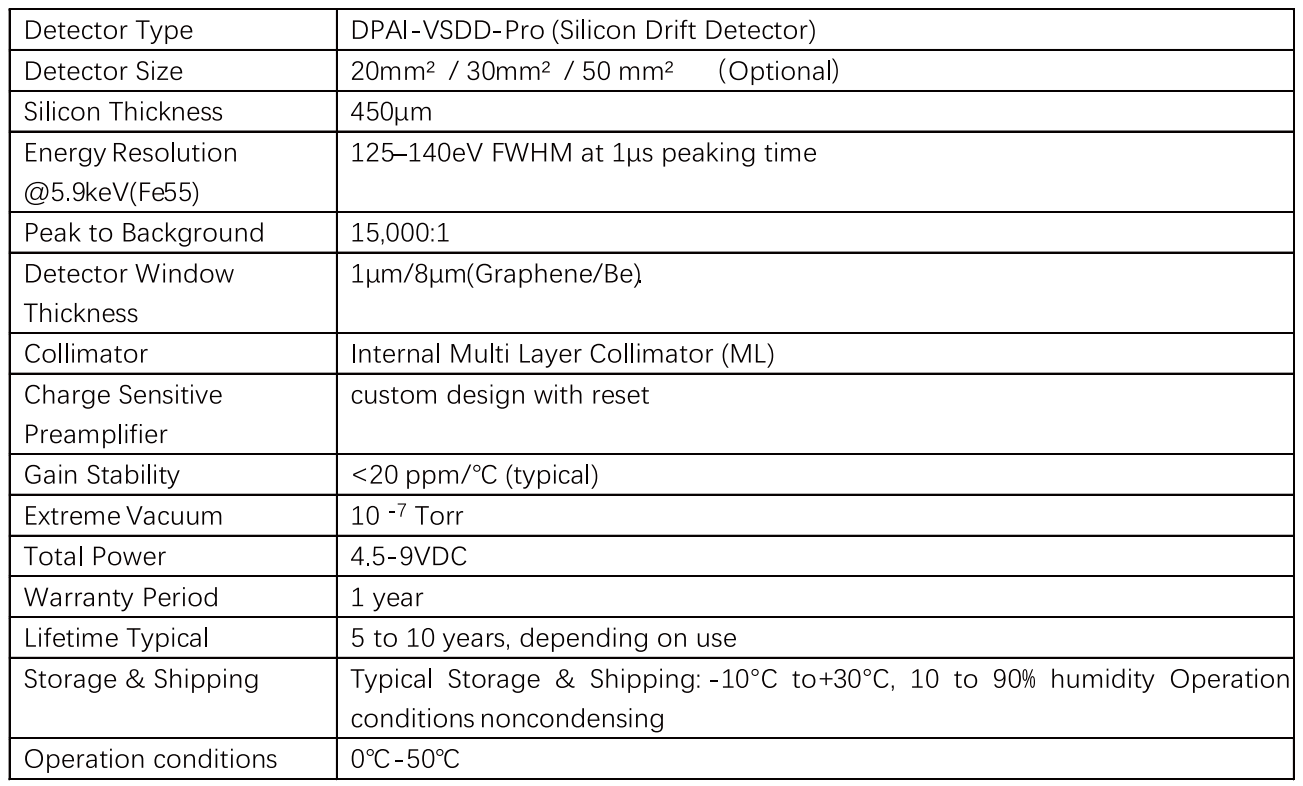

General Specifications:

Use of Collimators

Most of detectors contain internal collimators to improve spectral quality. X-rays interacting near the edges of the active volume of the detector may produce small pulses duet o partial charge collection. For some applications, these pulses result in artifacts in the spectrum which obscure the signal of interest. The internal collimator restricts X-rays to the active volume, where clean signals are produced. Depending on the type of detector, collimators can improve peak to background (P/B), eliminate edge effects, and eliminate false peaks.
