The DPAI-LSDE7-H is a high-performance detector based on advanced semiconductor detection technology. It employs a unique circuit architecture, whichOutperforming traditional Sipin detectors in key performance metrics, it delivers superior detection capabilities at the same homogeneous cost, combining outstanding performance withThis advantage offers a higher cost-effective solution in the industrial and scientific research inspection fields.

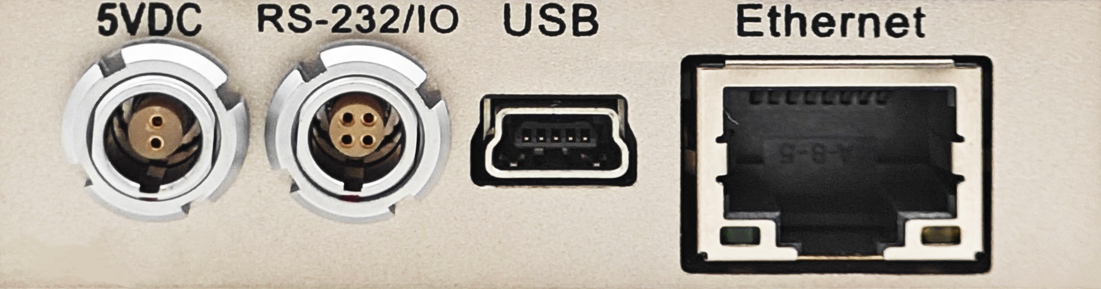

 USB port, RS232 port, Ethernet port (1000M optional)

Applications：

● X-Ray Fluorescence

● RoHS / WEEE Compliance XRF

● OEM & Special Applications

● Process Control

● Research

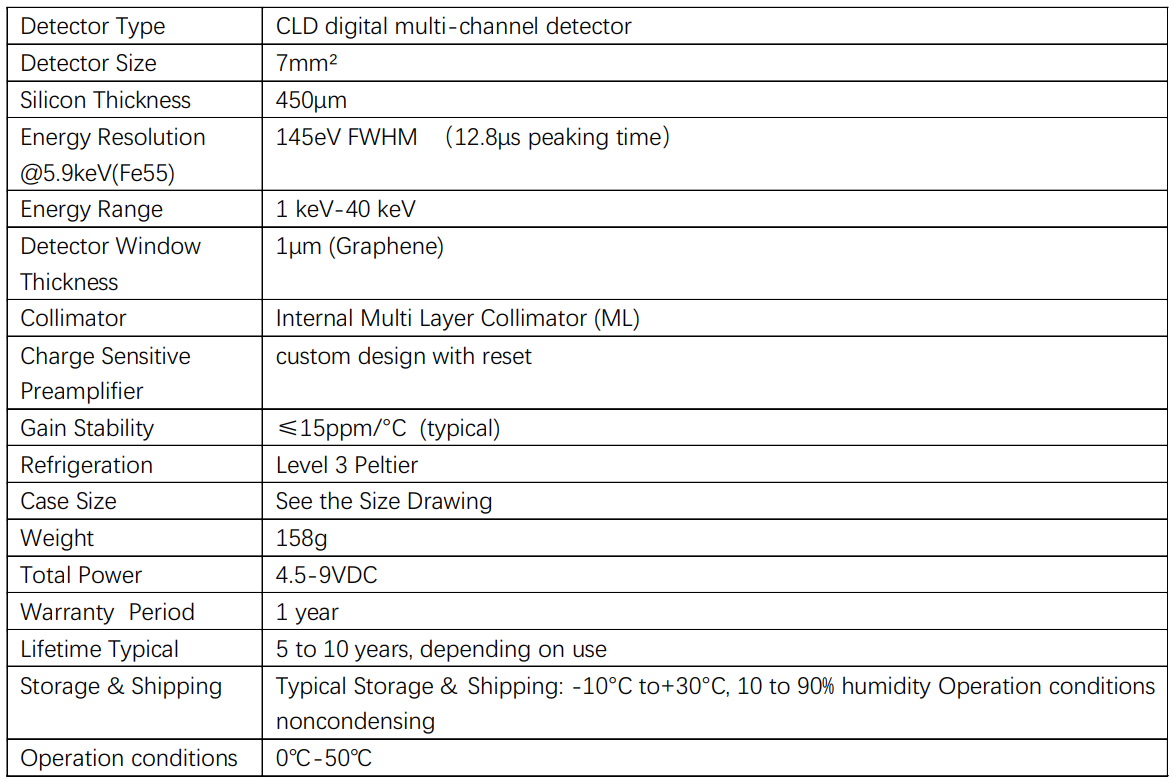

General Specifications

Use of Collimators

Most of detectors contain internal collimators to improve spectral quality. X-rays interacting near the edges of the active volume of the detector may produce small pulses duet o partial charge collection. For some applications, these pulses result in artifacts in the spectrum which obscure the signal of interest. The internal collimator restricts X-rays to the active volume, where clean signals are produced. Depending on the type of detector, collimators can improve peak to background (P/B), eliminate edge effects, and eliminate false peaks.
