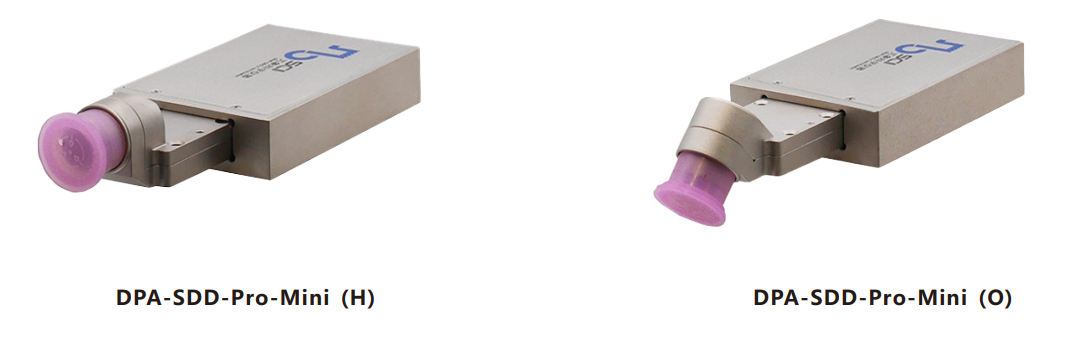

DPA-SDD-Pro-Mini is a high performance new X-ray Silicon Drift Detector, can realize the high resolution at a low forming time.

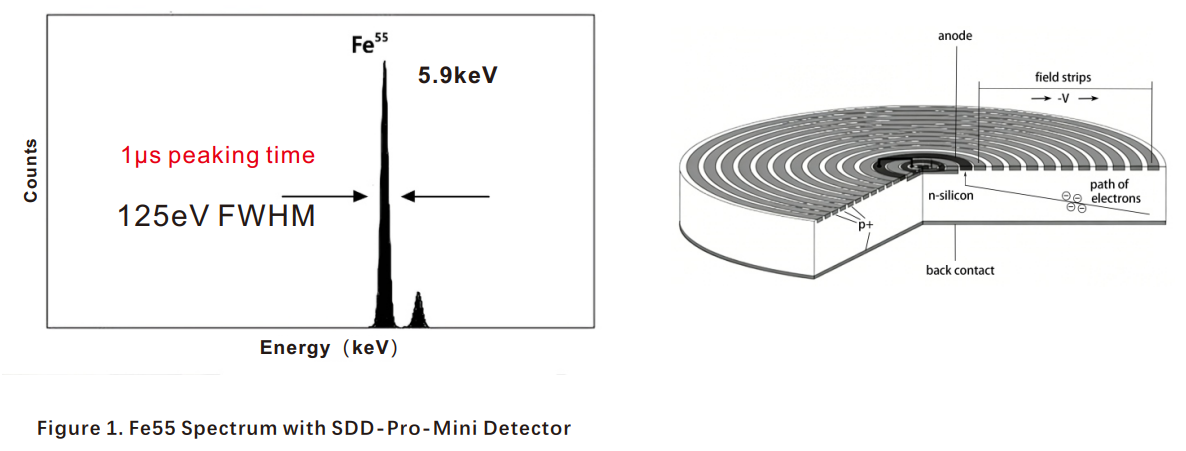

● 125eV FWHM Resolution @ 5.9 keV

● High Peak-to-Background Ratio 15,000:1

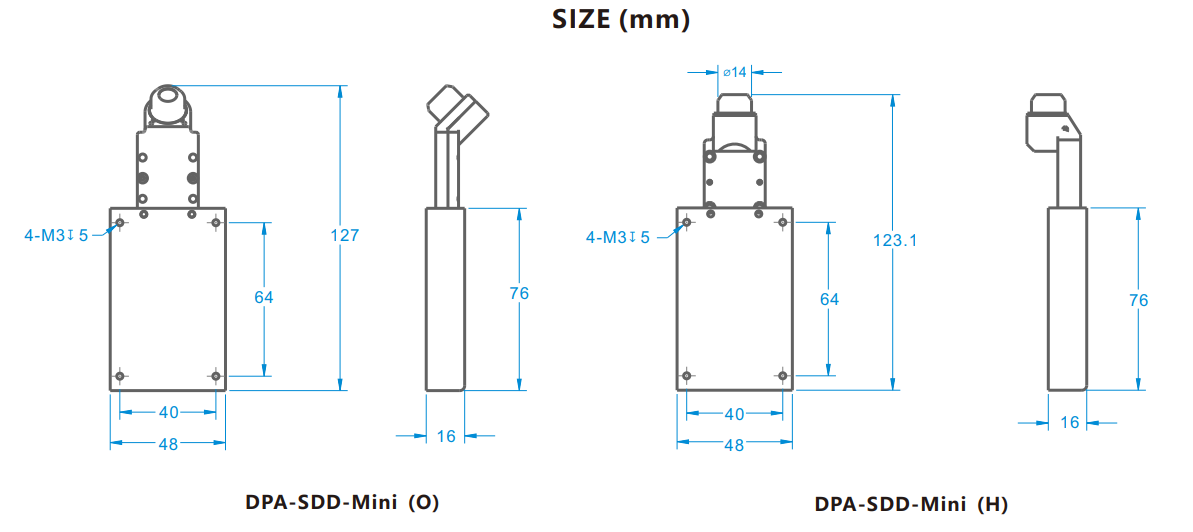

● Size: 20 mm²/ 30mm² / 50mm²

● Thickness: 450 μm

● 1 μs Peaking Time (Max cooling)

● Max. input count cate:2000KCPS

● USB Controlled & RS232 Controlled

● No Liquid Nitrogen

Applications：

● X-Ray Fluorescence

● RoHS / WEEE Compliance XRF

● OEM & Special Applications

● Process Control

● Research

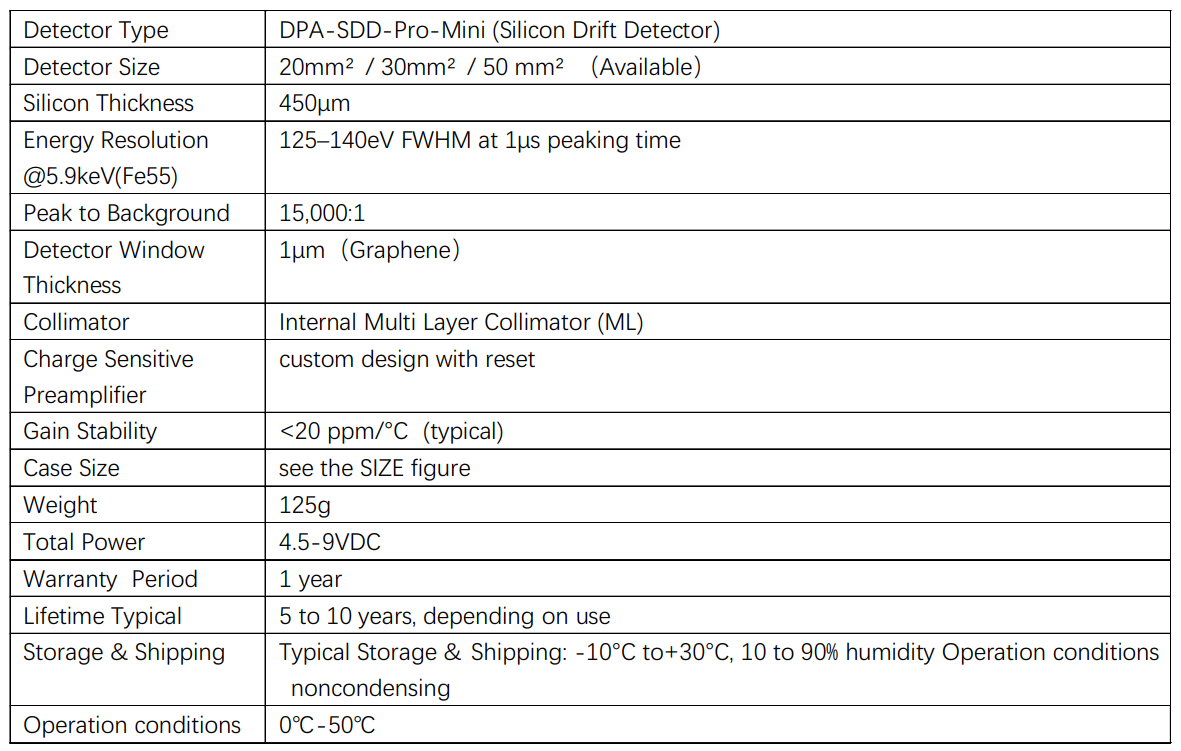

General Specifications

Use of Collimators

Most of detectors contain internal collimators to improve spectral quality. X-rays interacting near the edges of the active volume of the detector may produce small pulses due to partial charge collection. For some applications, these pulses result in artifacts in the spectrum which obscure the signal of interest. The internal collimator restricts X-rays to the active volume, where clean signals are produced. Depending on the type of detector, collimators can improve peak to background (P/B), eliminate edge effects, and/or eliminate false peaks.
